Zedan, Yasser, Samuel, Agnes M., Doty, Herbert W., Songmene, Victor et Samuel, Fawzy H..
2022.
« Effects of trace elements on the microstructural and machinability characteristics of AlSiCuMg castings ».
Materials, vol. 15, nº 1.
Compte des citations dans Scopus : 8.
Prévisualisation |
PDF
Songmene-V-2022-23857.pdf - Version publiée Licence d'utilisation : Creative Commons CC BY. Télécharger (65MB) | Prévisualisation |
Résumé

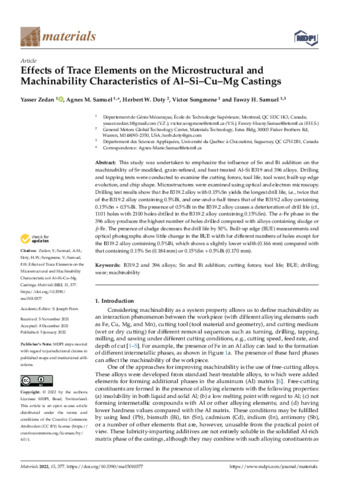

This study was undertaken to emphasize the influence of Sn and Bi addition on the machinability of Sr-modified, grain-refined, and heat-treated Al–Si B319 and 396 alloys. Drilling and tapping tests were conducted to examine the cutting forces, tool life, tool wear, built-up edge evolution, and chip shape. Microstructures were examined using optical and electron microscopy. Drilling test results show that the B319.2 alloy with 0.15%Sn yields the longest drill life, i.e., twice that of the B319.2 alloy containing 0.5%Bi, and one-and-a-half times that of the B319.2 alloy containing 0.15%Sn + 0.5%Bi. The presence of 0.5%Bi in the B319.2 alloy causes a deterioration of drill life (cf., 1101 holes with 2100 holes drilled in the B319.2 alloy containing 0.15%Sn). The α-Fe phase in the 396 alloy produces the highest number of holes drilled compared with alloys containing sludge or β-Fe. The presence of sludge decreases the drill life by 50%. Built-up edge (BUE) measurements and optical photographs show little change in the BUE width for different numbers of holes except for the B319.2 alloy containing 0.5%Bi, which shows a slightly lower width (0.166 mm) compared with that containing 0.15% Sn (0.184 mm) or 0.15%Sn + 0.5%Bi (0.170 mm)
| Type de document: | Article publié dans une revue, révisé par les pairs |
|---|---|
| Professeur: | Professeur Songmene, Victor |
| Affiliation: | Génie mécanique |
| Date de dépôt: | 24 janv. 2022 17:16 |
| Dernière modification: | 13 avr. 2023 16:08 |
| URI: | https://espace2.etsmtl.ca/id/eprint/23857 |
Actions (Authentification requise)
 |
Dernière vérification avant le dépôt |
