A nonlinear pulse shaping method using resonant piezoelectric MEMS devices

Downloads

Downloads per month over past year

Gratuze, Mathieu, Alameh, Abdul Hafiz, Robichaud, Alexandre et Nabki, Frederic. 2022. « A nonlinear pulse shaping method using resonant piezoelectric MEMS devices ». IEEE Transactions on Ultrasonics, Ferroelectrics, and Frequency Control, vol. 69, nº 4. pp. 1515-1527.

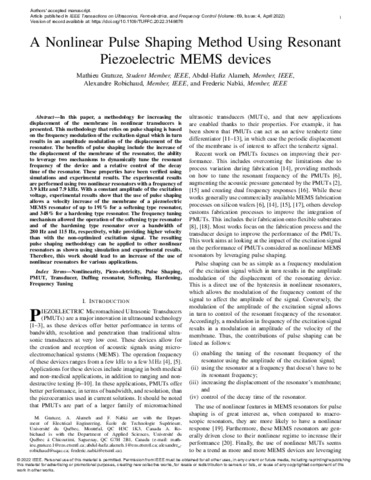

[thumbnail of Nabki-F-2022-24053.pdf]
Preview
PDF
Nabki-F-2022-24053.pdf - Accepted Version
Use licence: All rights reserved to copyright holder.

Download (7MB) | Preview

Abstract

In this article, a methodology for increasing the displacement of the membrane in nonlinear transducers is presented. This methodology that relies on pulse shaping is based on the frequency modulation of the excitation signal which in turn results in an amplitude modulation of the displacement of the resonator. The benefits of pulse shaping include the increase of the displacement of the membrane of the resonator, the ability to leverage two mechanisms to dynamically tune the resonant frequency of the device and a relative control of the decay time of the resonator. These properties have been verified using simulations and experimental results. The experimental results are performed using two nonlinear resonators with a frequency of 3.9 and 7.9 kHz. With a constant amplitude of the excitation voltage, experimental results show that the use of pulse shaping allows a velocity increase of the membrane of a piezoelectric microelectromechanical systems (MEMS) resonator of up to 191% for a softening type resonator (STR), and 348% for a hardening type resonator (HTR). The frequency tuning mechanism allowed the operation of the STR and of the HTR over a bandwidth of 280 and 115 Hz, respectively, while providing higher velocity than with the non-optimized excitation signal. The resulting pulse shaping methodology can be applied to other nonlinear resonators as shown using simulation and experimental results. Therefore, this work should lead to an increase of the use of nonlinear resonators for various applications.

Item Type: Peer reviewed article published in a journal
Professor:
Professor
Nabki, Frédéric
Affiliation: Génie électrique
Date Deposited: 07 Mar 2022 18:50
Last Modified: 29 Apr 2022 20:08
URI: https://espace2.etsmtl.ca/id/eprint/24053
