Real-time megapixel electro-optical imaging of thz beams with probe power normalization

Downloads

Downloads per month over past year

Blanchard, François, Arikawa, Takashi et Tanaka, Koichiro. 2022. « Real-time megapixel electro-optical imaging of thz beams with probe power normalization ». Sensors, vol. 22, nº 12.

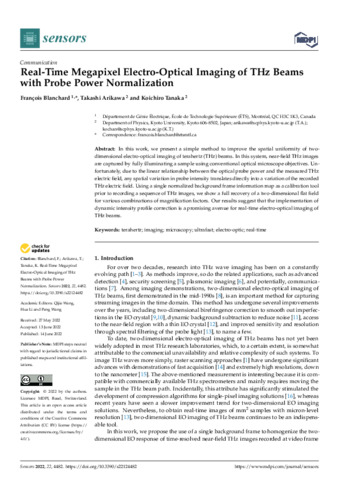

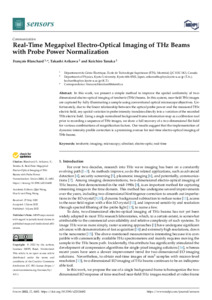

[thumbnail of Blanchard-F-2022-24894.pdf]
Preview
PDF
Blanchard-F-2022-24894.pdf - Published Version
Use licence: Creative Commons CC BY.

Download (8MB) | Preview

Abstract

In this work, we present a simple method to improve the spatial uniformity of two- dimensional electro-optical imaging of terahertz (THz) beams. In this system, near-field THz images are captured by fully illuminating a sample using conventional optical microscope objectives. Un- fortunately, due to the linear relationship between the optical probe power and the measured THz electric field, any spatial variation in probe intensity translates directly into a variation of the recorded THz electric field. Using a single normalized background frame information map as a calibration tool prior to recording a sequence of THz images, we show a full recovery of a two-dimensional flat field for various combinations of magnification factors. Our results suggest that the implementation of dynamic intensity profile correction is a promising avenue for real-time electro-optical imaging of THz beams.

Item Type: Peer reviewed article published in a journal
Professor:
Professor
Blanchard, François
Affiliation: Génie électrique
Date Deposited: 11 Jul 2022 19:08
Last Modified: 25 Jul 2022 18:12
URI: https://espace2.etsmtl.ca/id/eprint/24894
