Patient-specific cardio-respiratory motion prediction in x-ray angiography using LSTM networks


Downloads per month over past year

Azizmohammadi, Fariba, Navarro Castellanos, Iñaki, Miró, Joaquim, Segars, Paul, Samei, Ehsan and Duong, Luc. 2023. « Patient-specific cardio-respiratory motion prediction in x-ray angiography using LSTM networks ». Physics in medicine and biology, vol. 68, nº 2.
Compte des citations dans Scopus : 2.

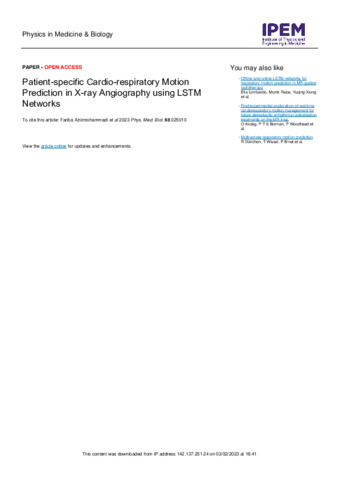

[thumbnail of Duong-L-2023-26116.pdf]
Duong-L-2023-26116.pdf - Published Version
Use licence: Creative Commons CC BY.

Download (1MB) | Preview


Objective. To develop a novel patient-specific cardio-respiratory motion prediction approach for X-ray angiography time series based on a simple long short-term memory (LSTM) model. Approach. The cardio-respiratory motion behavior in an X-ray image sequence was represented as a sequence of 2D affine transformation matrices, which provide the displacement information of contrasted moving objects (arteries and medical devices) in a sequence. The displacement information includes translation, rotation, shearing, and scaling in 2D. A many-to-many LSTM model was developed to predict 2D transformation parameters in matrix form for future frames based on previously generated images. The method was developed with 64 simulated phantom datasets (pediatric and adult patients) using a realistic cardio-respiratory motion simulator (XCAT) and was validated using 10 different patient X-ray angiography sequences. Main results. Using this method we achieved less than 1 mm prediction error for complex cardio-respiratory motion prediction. The following mean prediction error values were recorded over all the simulated sequences: 0.39 mm (for both motions), 0.33 mm (for only cardiac motion), and 0.47 mm (for only respiratory motion). The mean prediction error for the patient dataset was 0.58 mm. Significance. This study paves the road for a patient-specific cardio-respiratory motion prediction model, which might improve navigation guidance during cardiac interventions.

Item Type: Peer reviewed article published in a journal
Duong, Luc
Affiliation: Génie logiciel et des technologies de l'information
Date Deposited: 26 Jan 2023 23:49
Last Modified: 03 Feb 2023 16:43
