Investigation of expansion percentages and groove inclusions on the performance of welded, expanded, welded-expanded tube-to-tubesheet joints

Thekkuden, Dinu Thomas, Mourad, Abdel-Hamid Ismail, Bouzid, Abdel-Hakim et Sherif, Muhammad M.. 2023. « Investigation of expansion percentages and groove inclusions on the performance of welded, expanded, welded-expanded tube-to-tubesheet joints ». Journal of Materials Research and Technology, vol. 22. pp. 2078-2092.
Compte des citations dans Scopus : 2.

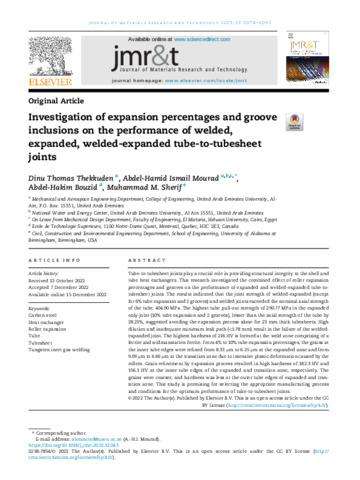

Prévisualisation

PDF Bouzid-H-26265.pdf - Version publiée Licence d'utilisation : Creative Commons CC BY. Télécharger (5MB) | Prévisualisation

Résumé

Tube-to-tubesheet joints play a crucial role in providing structural integrity to the shell and tube heat exchangers. This research investigated the combined effect of roller expansion percentages and grooves on the performance of expanded and welded-expanded tube-to- tubesheet joints. The results indicated that the joint strength of welded-expanded (except for 6% tube expansion and 2 grooves) and welded joints exceeded the nominal axial strength of the tube, 404.90 MPa. The highest tube pull-out strength of 290.77 MPa in the expanded only joint (10% tube expansion and 2 grooves), lesser than the axial strength of the tube by 28.25%, suggested avoiding the expansion process alone for 23 mm thick tubesheets. High dilution and inadequate minimum leak path (<1.78 mm) result in the failure of the welded- expanded joint. The highest hardness of 216 HV is formed at the weld zone comprising of a ferrite and widmanstatten ferrite. From 4% to 10% tube expansion percentages, the grains at the inner tube edges were refined from 8.33 mm to 6.25 mm at the expanded zone and from 9.09 mm to 6.66 mm at the transition zone due to intensive plastic deformation caused by the rollers. Grain refinement by expansion process resulted in high hardness of 182.3 HV and 156.1 HV at the inner tube edges of the expanded and transition zone, respectively. The grains were coarser, and hardness was less at the outer tube edges of expanded and tran- sition zone. This study is promising for selecting the appropriate manufacturing process and conditions for the optimum performance of tube-to-tubesheet joints.

Type de document:	Article publié dans une revue, révisé par les pairs
Professeur:	Professeur Bouzid, Hakim
Affiliation:	Génie mécanique
Date de dépôt:	10 mars 2023 19:09
Dernière modification:	13 mars 2023 14:31
URI:	https://espace2.etsmtl.ca/id/eprint/26265
