Automated detection of regions of interest in cartridge case images using deep learning


Downloads per month over past year

Le Bouthillier, Marie-Eve, Hrynkiw, Lynne, Beauchamp, Alain, Duong, Luc and Ratté, Sylvie. 2023. « Automated detection of regions of interest in cartridge case images using deep learning ». Journal of Forensic Sciences.
Compte des citations dans Scopus : 1. (In press)

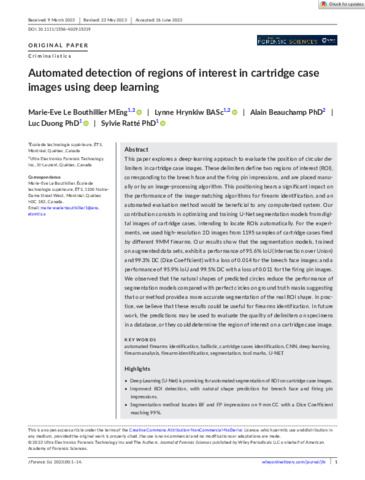

[thumbnail of Duong-L-2023-27282.pdf]
Duong-L-2023-27282.pdf - Published Version
Use licence: Creative Commons CC BY-NC-ND.

Download (10MB) | Preview


This paper explores a deep-learning approach to evaluate the position of circular delimiters in cartridge case images. These delimiters define two regions of interest (ROI), corresponding to the breech face and the firing pin impressions, and are placed manually or by an image-processing algorithm. This positioning bears a significant impact on the performance of the image-matching algorithms for firearm identification, and an automated evaluation method would be beneficial to any computerized system. Our contribution consists in optimizing and training U-Net segmentation models from digital images of cartridge cases, intending to locate ROIs automatically. For the experiments, we used high-resolution 2D images from 1195 samples of cartridge cases fired by different 9MM firearms. Our results show that the segmentation models, trained on augmented data sets, exhibit a performance of 95.6% IoU (Intersection over Union) and 99.3% DC (Dice Coefficient) with a loss of 0.014 for the breech face images; and a performance of 95.9% IoU and 99.5% DC with a loss of 0.011 for the firing pin images. We observed that the natural shapes of predicted circles reduce the performance of segmentation models compared with perfect circles on ground truth masks suggesting that our method provide a more accurate segmentation of the real ROI shape. In practice, we believe that these results could be useful for firearms identification. In future work, the predictions may be used to evaluate the quality of delimiters on specimens in a database, or they could determine the region of interest on a cartridge case image.

Item Type: Peer reviewed article published in a journal
Duong, Luc
Ratté, Sylvie
Affiliation: Génie logiciel et des technologies de l'information, Génie logiciel et des technologies de l'information
Date Deposited: 08 Aug 2023 14:25
Last Modified: 16 Oct 2023 16:30
