A review on the analysis of thermal and thermodynamic aspects of grain refinement of aluminum-silicon-based alloys

Samuel, Ehab, Samuel, Agnes M., Songmene, Victor et Samuel, Fawzy H.. 2023. « A review on the analysis of thermal and thermodynamic aspects of grain refinement of aluminum-silicon-based alloys ». Materials, vol. 16, nº 16.
Compte des citations dans Scopus : 3.

Prévisualisation

PDF Songmene-V-2023-27658.pdf - Version publiée Licence d'utilisation : Creative Commons CC BY. Télécharger (26MB) | Prévisualisation

Résumé

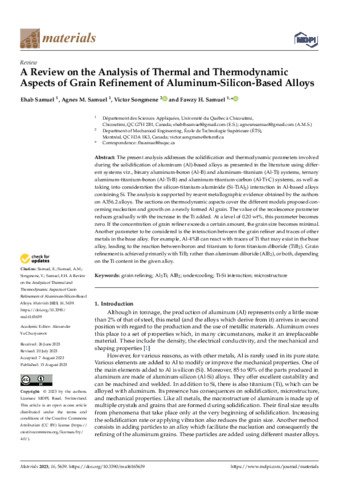

The present analysis addresses the solidification and thermodynamic parameters involved during the solidification of aluminum (Al)-based alloys as presented in the literature using different systems viz., binary aluminum-boron (Al-B) and aluminum-titanium (Al-Ti) systems, ternary aluminum-titanium-boron (Al-Ti-B) and aluminum-titanium-carbon (Al-Ti-C) systems, as well as taking into consideration the silicon-titanium-aluminide (Si-TiAl3) interaction in Al-based alloys containing Si. The analysis is supported by recent metallographic evidence obtained by the authors on A356.2 alloys. The sections on thermodynamic aspects cover the different models proposed concerning nucleation and growth on a newly formed Al grain. The value of the recalescence parameter reduces gradually with the increase in the Ti added. At a level of 0.20 wt%, this parameter becomes zero. If the concentration of grain refiner exceeds a certain amount, the grain size becomes minimal. Another parameter to be considered is the interaction between the grain refiner and traces of other metals in the base alloy. For example, Al-4%B can react with traces of Ti that may exist in the base alloy, leading to the reaction between boron and titanium to form titanium diboride (TiB2). Grain refinement is achieved primarily with TiB2 rather than aluminum diboride (AlB2), or both, depending on the Ti content in the given alloy.

Type de document:	Article publié dans une revue, révisé par les pairs
Professeur:	Professeur Songmene, Victor
Affiliation:	Génie mécanique
Date de dépôt:	13 sept. 2023 17:40
Dernière modification:	17 oct. 2023 17:57
URI:	https://espace2.etsmtl.ca/id/eprint/27658

Actions (Authentification requise)

Dernière vérification avant le dépôt
