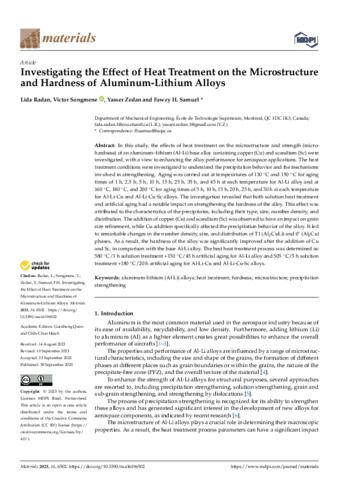

Investigating the effect of heat treatment on the microstructure and hardness of aluminum-lithium alloys

Radan, Lida, Songmene, Victor, Zedan, Yasser et Samuel, Fawzy H.. 2023. « Investigating the effect of heat treatment on the microstructure and hardness of aluminum-lithium alloys ». Materials, vol. 16, nº 19.
Compte des citations dans Scopus : 1.

Prévisualisation

PDF Songmene-V-2023-28179.pdf - Version publiée Licence d'utilisation : Creative Commons CC BY. Télécharger (8MB) | Prévisualisation

Résumé

In this study, the effects of heat treatment on the microstructure and strength (micro-hardness) of an aluminum–lithium (Al-Li) base alloy containing copper (Cu) and scandium (Sc) were investigated, with a view to enhancing the alloy performance for aerospace applications. The heat treatment conditions were investigated to understand the precipitation behavior and the mechanisms involved in strengthening. Aging was carried out at temperatures of 130 °C and 150 °C for aging times of 1 h, 2.5 h, 5 h, 10 h, 15 h, 25 h, 35 h, and 45 h at each temperature for Al-Li alloy and at 160 °C, 180 °C, and 200 °C for aging times of 5 h, 10 h, 15 h, 20 h, 25 h, and 30 h at each temperature for Al-Li-Cu and Al-Li-Cu-Sc alloys. The investigation revealed that both solution heat treatment and artificial aging had a notable impact on strengthening the hardness of the alloy. This effect was attributed to the characteristics of the precipitates, including their type, size, number density, and distribution. The addition of copper (Cu) and scandium (Sc) was observed to have an impact on grain size refinement, while Cu addition specifically affected the precipitation behavior of the alloy. It led to remarkable changes in the number density, size, and distribution of T1 (Al2CuLi) and θ’ (Al2Cu) phases. As a result, the hardness of the alloy was significantly improved after the addition of Cu and Sc, in comparison with the base Al-Li alloy. The best heat treatment process was determined as: 580 °C/1 h solution treatment +150 °C/45 h artificial aging for Al-Li alloy and 505 °C/5 h solution treatment +180 °C/20 h artificial aging for Al-Li-Cu and Al-Li-Cu-Sc alloys

Type de document:	Article publié dans une revue, révisé par les pairs
Professeur:	Professeur Songmene, Victor
Affiliation:	Génie mécanique
Date de dépôt:	18 déc. 2023 19:07
Dernière modification:	06 févr. 2024 19:31
URI:	https://espace2.etsmtl.ca/id/eprint/28179

Actions (Authentification requise)

Dernière vérification avant le dépôt
