Tjoelker, Adam R., Baraër, Michel, Valence, Eole, Charonnat, Bastien, Masse-Dufresne, Janie, Mark, Bryan G. et McKenzie, Jeffrey M..
2024.

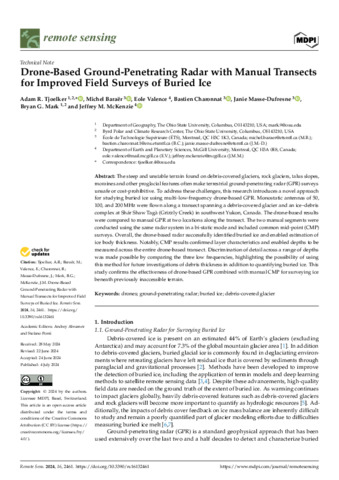

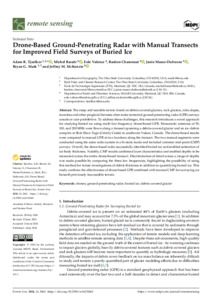

« Drone-based ground-penetrating radar with manual transects for improved field surveys of buried ice ».
Remote Sensing, vol. 16, nº 13.
Prévisualisation |
PDF
Baraer-M-2024-29034.pdf - Version publiée Licence d'utilisation : Creative Commons CC BY. Télécharger (14MB) | Prévisualisation |
Résumé
The steep and unstable terrain found on debris-covered glaciers, rock glaciers, talus slopes, moraines and other proglacial features often make terrestrial ground-penetrating radar (GPR) surveys unsafe or cost-prohibitive. To address these challenges, this research introduces a novel approach for studying buried ice using multi-low-frequency drone-based GPR. Monostatic antennas of 50, 100, and 200 MHz were flown along a transect spanning a debris-covered glacier and an ice–debris complex at Shár Shaw Tagà (Grizzly Creek) in southwest Yukon, Canada. The drone-based results were compared to manual GPR at two locations along the transect. The two manual segments were conducted using the same radar system in a bi-static mode and included common mid-point (CMP) surveys. Overall, the drone-based radar successfully identified buried ice and enabled estimation of ice body thickness. Notably, CMP results confirmed layer characteristics and enabled depths to be measured across the entire drone-based transect. Discrimination of detail across a range of depths was made possible by comparing the three low frequencies, highlighting the possibility of using this method for future investigations of debris thickness in addition to quantifying buried ice. This study confirms the effectiveness of drone-based GPR combined with manual CMP for surveying ice beneath previously inaccessible terrain.
| Type de document: | Article publié dans une revue, révisé par les pairs |
|---|---|
| Professeur: | Professeur Baraër, Michel Masse-Dufresne, Janie |
| Affiliation: | Génie de la construction, Génie de la construction |
| Date de dépôt: | 30 juill. 2024 18:56 |
| Dernière modification: | 01 août 2024 15:27 |
| URI: | https://espace2.etsmtl.ca/id/eprint/29034 |
