Tolouei, Ehsan, Hurel, Valentin, Loucif, Abdelhalim, Morin, Jean-Benoit et Jahazi, Mohammad.
2024.
« Influence of the as quenched state and tempering temperature on the final microstructure and hardness of a high strength medium carbon steel ».
Materials Chemistry and Physics, vol. 325.
Prévisualisation |
PDF
Jahazi-M-2024-29382.pdf - Version publiée Licence d'utilisation : Creative Commons CC BY-NC. Télécharger (23MB) | Prévisualisation |
Résumé

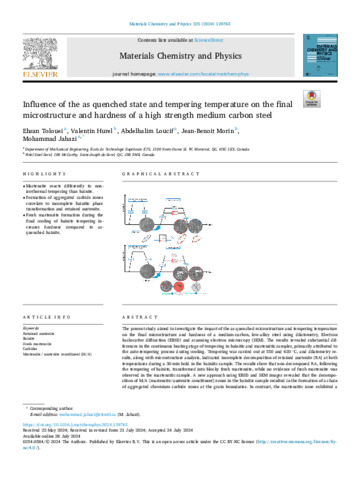

The present study aimed to investigate the impact of the as-quenched microstructure and tempering temperature on the final microstructure and hardness of a medium-carbon, low-alloy steel using dilatometry, Electron backscatter diffraction (EBSD) and scanning electron microscopy (SEM). The results revealed substantial differences in the continuous heating stage of tempering in bainitic and martensitic samples, primarily attributed to the auto-tempering process during cooling. Tempering was carried out at 550 and 620 °C, and dilatometry results, along with microstructure analysis, indicated incomplete decomposition of retained austenite (RA) at both temperatures during a 30-min hold in the bainitic sample. The results show that non-decomposed RA, following the tempering of bainite, transformed into blocky fresh martensite, while no evidence of fresh martensite was observed in the martensitic sample. A new approach using EBSD and SEM images revealed that the decomposition of M/A (martensite/austenite constituent) zones in the bainitic sample resulted in the formation of a chain of aggregated chromium carbide zones at the grain boundaries. In contrast, the martensitic zone exhibited a uniform distribution of carbides in the microstructure. The stability of the phases was examined using the TCFE10 (thermodynamics) and MOBFE5 (mobility) modules of the DICTRA Themo-Calc software. Hardness measurements on all samples indicated decreases by about 18–24 % in the martensitic sample after tempering, while the bainitic sample exhibited a 5 % increase in hardness after tempering, attributed to secondary hardening and fresh martensite formation.
| Type de document: | Article publié dans une revue, révisé par les pairs |
|---|---|
| Professeur: | Professeur Jahazi, Mohammad |
| Affiliation: | Génie mécanique |
| Date de dépôt: | 04 sept. 2024 19:47 |
| Dernière modification: | 12 sept. 2024 18:35 |
| URI: | https://espace2.etsmtl.ca/id/eprint/29382 |
Actions (Authentification requise)
 |
Dernière vérification avant le dépôt |
