Sokakini, Soumaya, Simo Tala, Jules Voguelin, Nadau, Lionel, Ilinca, Adrian et Bougeard, Daniel.
2025.

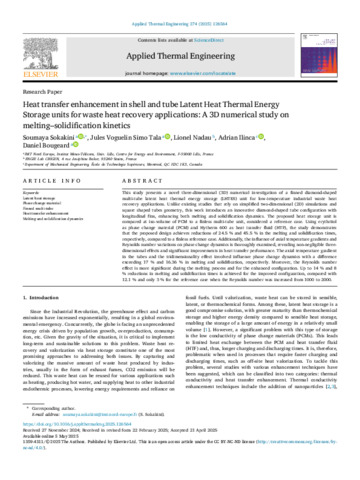

« Heat transfer enhancement in shell and tube Latent Heat Thermal Energy Storage units for waste heat recovery applications: A 3D numerical study on melting–solidification kinetics ».
Applied Thermal Engineering, vol. 274, nº Part B.
Compte des citations dans Scopus : 4.
Prévisualisation |
PDF
Ilinca-A-2025-30953.pdf - Version publiée Licence d'utilisation : Creative Commons CC BY-NC-ND. Télécharger (5MB) | Prévisualisation |
Résumé
This study presents a novel three-dimensional (3D) numerical investigation of a finned diamond-shaped multi-tube latent heat thermal energy storage (LHTES) unit for low-temperature industrial waste heat recovery applications. Unlike existing studies that rely on simplified two-dimensional (2D) simulations and square shaped tubes geometry, this work introduces an innovative diamond-shaped tube configuration with longitudinal fins, enhancing both melting and solidification dynamics. The proposed heat storage unit is compared at iso-volume of PCM to a finless multi-tube unit, considered a reference case. Using erythritol as phase change material (PCM) and Hytherm 600 as heat transfer fluid (HTF), the study demonstrates that the proposed design achieves reductions of 24.5 % and 45.5 % in the melting and solidification times, respectively, compared to a finless reference case. Additionally, the influence of axial temperature gradients and Reynolds number variations on phase change dynamics is thoroughly examined, revealing non-negligible threedimensional effects and significant improvements in heat transfer performance. The axial temperature gradient in the tubes and the tridimensionality effect involved influence phase change dynamics with a difference exceeding 17 % and 16.36 % in melting and solidification, respectively. Moreover, the Reynolds number effect is more significant during the melting process and for the enhanced configuration. Up to 14 % and 8 % reductions in melting and solidification times is achieved for the improved configuration, compared with 12.1 % and only 3 % for the reference case when the Reynolds number was increased from 1000 to 2000.
| Type de document: | Article publié dans une revue, révisé par les pairs |
|---|---|
| Professeur: | Professeur Ilinca, Adrian |
| Affiliation: | Génie mécanique |
| Date de dépôt: | 22 mai 2025 16:13 |
| Dernière modification: | 02 juin 2025 18:51 |
| URI: | https://espace2.etsmtl.ca/id/eprint/30953 |
