Orozco, Gabriel, Lamothe, Sébastien, Al-falahat, Wesam, Carret, Jean-Claude et Carter, Alan.
2025.
« Laboratory study on the stiffening phenomena caused by aging and by the addition of kraft lignin at low dosages measured by physico-chemical and rheological tests on a soft bitumen ».
Materials, vol. 18, nº 10.
Prévisualisation |
PDF

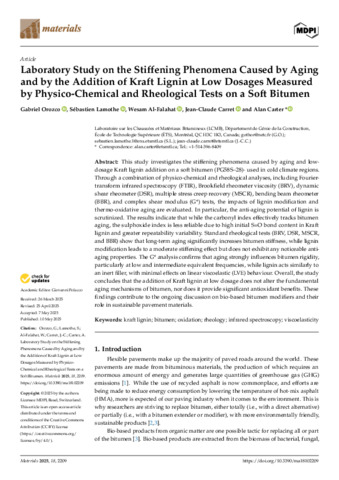

Carret-JC-2025-31047.pdf - Version publiée Licence d'utilisation : Creative Commons CC BY. Télécharger (6MB) | Prévisualisation |
Résumé
This study investigates the stiffening phenomena caused by aging and low-dosage Kraft lignin addition on a soft bitumen (PG58S–28)- used in cold climate regions. Through a combination of physico-chemical and rheological analyses, including Fourier-transform infrared spectroscopy (FTIR), Brookfield rheometer viscosity (BRV), dynamic shear rheometer (DSR), multiple stress creep recovery (MSCR), bending beam rheometer (BBR), and complex shear modulus (G*) tests, the impacts of lignin modification and thermo-oxidative aging are evaluated. In particular, the anti-aging potential of lignin is scrutinized. The results indicate that while the carbonyl index effectively tracks bitumen aging, the sulphoxide index is less reliable due to high initial S=O bond content in Kraft lignin and greater repeatability variability. Standard rheological tests (BRV, DSR, MSCR, and BBR) show that long-term aging significantly increases bitumen stiffness, while lignin modification leads to a moderate stiffening effect but does not exhibit any noticeable anti-aging properties. The G* analysis confirms that aging strongly influences bitumen rigidity, particularly at low and intermediate equivalent frequencies, while lignin acts similarly to an inert filler, with minimal effects on linear viscoelastic (LVE) behaviour. Overall, the study concludes that the addition of Kraft lignin at low dosage does not alter the fundamental aging mechanisms of bitumen, nor does it provide significant antioxidant benefits. These findings contribute to the ongoing discussion on bio-based bitumen modifiers and their role in sustainable pavement materials.
| Type de document: | Article publié dans une revue, révisé par les pairs |
|---|---|
| Professeur: | Professeur Carret, Jean-Claude Carter, Alan |
| Affiliation: | Génie de la construction, Génie de la construction |
| Date de dépôt: | 30 juin 2025 20:35 |
| Dernière modification: | 07 août 2025 21:12 |
| URI: | https://espace2.etsmtl.ca/id/eprint/31047 |
