Annunziata, Rémy, Bonne, Nicolas et Garnier, François.
2025.

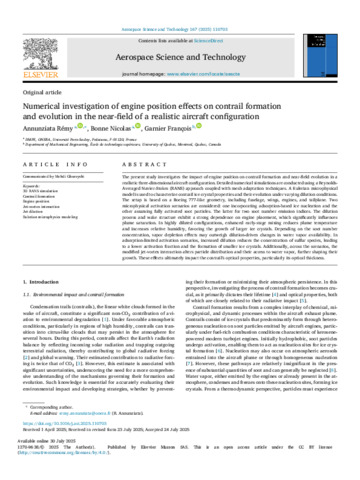

« Numerical investigation of engine position effects on contrail formation and evolution in the near-field of a realistic aircraft configuration ».
Aerospace Science and Technology, vol. 167.
Prévisualisation |
PDF
Garnier-F-2025-31474.pdf - Version publiée Licence d'utilisation : Creative Commons CC BY. Télécharger (2MB) | Prévisualisation |
Résumé
The present study investigates the impact of engine position on contrail formation and near-field evolution in a realistic three-dimensional aircraft configuration. Detailed numerical simulations are conducted using a Reynolds-Averaged Navier-Stokes (RANS) approach coupled with mesh adaptation techniques. A Eulerian microphysical model is used to characterize contrail ice crystal properties and their evolution under varying dilution conditions. The setup is based on a Boeing 777-like geometry, including fuselage, wings, engines, and tailplane. Two microphysical activation scenarios are considered: one incorporating adsorption-based ice nucleation and the other assuming fully activated soot particles. The latter for two soot number emission indices. The dilution process and wake structure exhibit a strong dependence on engine placement, which significantly influences plume saturation. In highly diluted configurations, enhanced early-stage mixing reduces plume temperature and increases relative humidity, favoring the growth of larger ice crystals. Depending on the soot number concentration, vapor depletion effects may outweigh dilution-driven changes in water vapor availability. In adsorption-limited activation scenarios, increased dilution reduces the concentration of sulfur species, leading to a lower activation fraction and the formation of smaller ice crystals. Additionally, across the scenarios, the modified jet-vortex interaction alters particle distribution and their access to water vapor, further shaping their growth. These effects ultimately impact the contrail's optical properties, particularly its optical thickness.
| Type de document: | Article publié dans une revue, révisé par les pairs |
|---|---|
| Professeur: | Professeur Garnier, François |
| Affiliation: | Génie aérospatial |
| Date de dépôt: | 21 août 2025 14:22 |
| Dernière modification: | 24 sept. 2025 22:12 |
| URI: | https://espace2.etsmtl.ca/id/eprint/31474 |
