Gauthier, Maxime. 2025. « Comparison of PIV measurements in the vaneless space of the TR-Francis turbine at speed-no-load to CFD simulation results ». Communication lors de la conférence : CSME-CFDSC-CSR 2025 International Congress (Montreal, QC, Canada, May 25-28, 2025).
Prévisualisation |
PDF

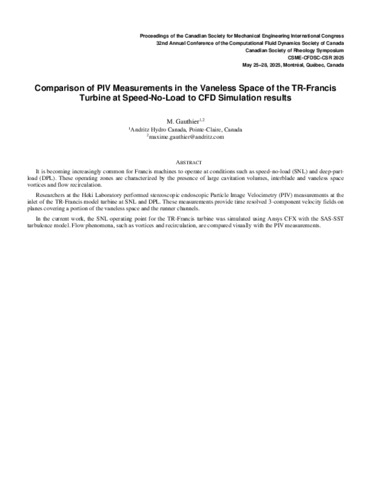

121 - Comparison of PIV measurements in .pdf - Version publiée Licence d'utilisation : Tous les droits réservés aux détenteurs du droit d'auteur. Télécharger (45kB) | Prévisualisation |
Résumé
It is becoming increasingly common for Francis machines to operate at conditions such as speed-no-load (SNL) and deep-part-load (DPL). These operating zones are characterized by the presence of large cavitation volumes, interblade and vaneless space vortices and flow recirculation.Researchers at the Heki Laboratory performed stereoscopic endoscopic Particle Image Velocimetry (PIV) measurements at the inlet of the TR-Francis model turbine at SNL and DPL. These measurements provide time resolved 3-component velocity fields on planes covering a portion of the vaneless space and the runner channels.In the current work, the SNL operating point for the TR-Francis turbine was simulated using Ansys CFX with the SAS-SST turbulence model. Flow phenomena, such as vortices and recirculation, are compared visually with the PIV measurements.
| Type de document: | Communication (Communication) |
|---|---|
| Informations complémentaires: | Progress in Canadian Mechanical Engineering, Volume 8. Co-chairs: Lucas A. Hof, Giuseppe Di Labbio, Antoine Tahan, Marlène Sanjosé, Sébastien Lalonde and Nicole R. Demarquette. |
| Date de dépôt: | 18 déc. 2025 14:22 |
| Dernière modification: | 18 déc. 2025 14:22 |
| URI: | https://espace2.etsmtl.ca/id/eprint/31993 |
