Wang, Anqi, Liu, Jingtian et Wen, John. 2025. « Propagation of combustion and thermal characteristics of magnetic Al@Fe3O4 metal-stable intermetallic composite ». Communication lors de la conférence : CSME-CFDSC-CSR 2025 International Congress (Montreal, QC, Canada, May 25-28, 2025).
Prévisualisation |
PDF

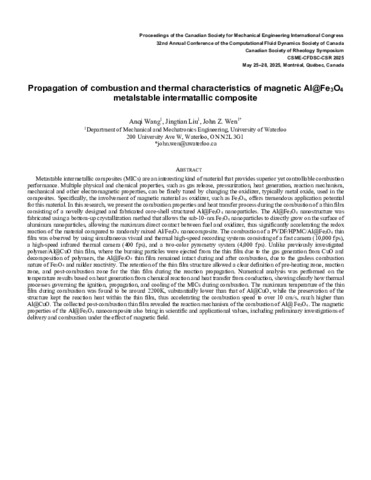

389 - Propagation of combustion and ther.pdf - Version publiée Licence d'utilisation : Tous les droits réservés aux détenteurs du droit d'auteur. Télécharger (100kB) | Prévisualisation |
Résumé
Metastable intermetallic composites (MICs) are an interesting kind of material that provides superior yet controllable combustion performance. Multiple physical and chemical properties, such as gas release, pressurization, heat generation, reaction mechanism, mechanical and other electromagnetic properties, can be finely tuned by changing the oxidizer, typically metal oxide, used in the composites. Specifically, the involvement of magnetic material as oxidizer, such as Fe3O4, offers tremendous application potential for this material. In this research, we present the combustion properties and heat transfer process during the combustion of a thin film consisting of a novelly designed and fabricated core-shell structured Al@Fe3O4 nanoparticles. The Al@Fe3O4 nanostructure was fabricated using a bottom-up crystallization method that allows the sub-10-nm Fe3O4 nanoparticles to directly grow on the surface of aluminum nanoparticles, allowing the maximum direct contact between fuel and oxidizer, thus significantly accelerating the redox reaction of the material compared to randomly mixed Al/Fe3O4 nanocomposite. The combustion of a PVDF/HPMC/Al@Fe3O4 thin film was observed by using simultaneous visual and thermal high-speed recording systems consisting of a fast camera (10,000 fps), a high-speed infrared thermal camera (400 fps), and a two-color pyrometry system (4,000 fps). Unlike previously investigated polymer/Al@CuO thin film, where the burning particles were ejected from the thin film due to the gas generation from CuO and decomposition of polymers, the Al@Fe3O4 thin film remained intact during and after combustion, due to the gasless combustion nature of Fe3O4 and milder reactivity. The retention of the thin film structure allowed a clear definition of pre-heating zone, reaction zone, and post-combustion zone for the thin film during the reaction propagation. Numerical analysis was performed on the temperature results based on heat generation from chemical reaction and heat transfer from conduction, showing clearly how thermal processes governing the ignition, propagation, and cooling of the MICs during combustion. The maximum temperature of the thin film during combustion was found to be around 2200K, substantially lower than that of Al@CuO, while the preservation of the structure kept the reaction heat within the thin film, thus accelerating the combustion speed to over 10 cm/s, much higher than Al@CuO. The collected post-combustion thin film revealed the reaction mechanism of the combustion of Al@ Fe3O4. The magnetic properties of the Al@Fe3O4 nanocomposite also bring in scientific and applicational values, including preliminary investigations of delivery and combustion under the effect of magnetic field.
| Type de document: | Communication (Communication) |
|---|---|
| Informations complémentaires: | Progress in Canadian Mechanical Engineering, Volume 8. Co-chairs: Lucas A. Hof, Giuseppe Di Labbio, Antoine Tahan, Marlène Sanjosé, Sébastien Lalonde and Nicole R. Demarquette. |
| Date de dépôt: | 18 déc. 2025 14:56 |
| Dernière modification: | 18 déc. 2025 14:56 |
| URI: | https://espace2.etsmtl.ca/id/eprint/32265 |
