Marcil-St-Onge, Gabriel, Chandoul, Abdelberi, Thomas, Yannig, Pelletier, Roger, Lefebvre, Louis-Philippe et Demers, Vincent.
2025.

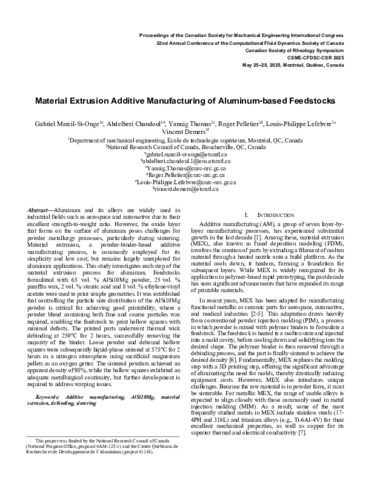

« Material extrusion additive manufacturing of aluminum-based feedstocks ».
In Proceedings of the CSME-CFDSC-CSR 2025 International Congress (Montreal, QC, Canada, May 25-28, 2025)
Coll. « Progress in Canadian Mechanical Engineering », vol. 8.
Prévisualisation |
PDF
239 - Material extrusion additive manufa.pdf - Version publiée Licence d'utilisation : Tous les droits réservés aux détenteurs du droit d'auteur. Télécharger (36MB) | Prévisualisation |
Résumé
AlSi10Mg is a versatile aluminum alloy widely used in the aerospace and automotive industries due to its high strength-to-weight ratio, corrosion resistance, thermal conductivity, and machinability. It is also one of the most popular aluminum alloys for additive manufacturing (AM) via laser powder bed fusion (LPBF) processes. In recent years, AM via material extrusion (MEX) has been adapted to produce metallic parts using powder-polymer feedstocks similar to those employed in metal injection molding (MIM). This approach has demonstrated suitability for fabricating complex geometries with good dimensional accuracy. However, the fabrication of aluminum parts via MEX remains largely undemonstrated. This study aims to investigate the feasibility of using AlSi10Mg powders in low-viscosity MIM-like feedstocks for manufacturing high-density parts through the MEX process. Feedstocks containing 65 vol. % of AlSi10Mg powder, 2 vol. % of stearic acid, 8 vol. % of ethylene-vinyl acetate, and 25 vol. % of paraffin wax were tested. Three different powder types were evaluated: a MIM-grade powder (0-20 ?m), a binder jetting powder (20-63 ?m), and a mixed powder (0-110 ?m). The particle size distribution of the AlSi10Mg powder was identified as a critical factor for successful printing. The MIM-grade powder resulted in over-extrusion defects, while the mixed powder yielded parts with minimal surface defects. The binder jetting powder was not printable due to binder segregation. Thermal wick-debinding was performed on simple printed geometries at 250°C for 2 hours under an industrial-grade argon atmosphere. Liquid-phase sintering was conducted on loose powders and debound parts in a high-purity nitrogen atmosphere at 575°C for 2 hours, with magnesium chips used as an oxygen getter to mitigate oxidation. The sintered powders exhibited a dense and homogenous microstructure, achieving up to 98% of the theoretical density, as measured using the Archimedes’ method. Sintered printed geometries demonstrated a similar microstructure but experienced warping and cracking, highlighting the need for further optimization of the sintering process for MEX parts.
| Type de document: | Compte rendu de conférence |
|---|---|
| Éditeurs: | Éditeurs ORCID Hof, Lucas A. NON SPÉCIFIÉ Di Labbio, Giuseppe NON SPÉCIFIÉ Tahan, Antoine NON SPÉCIFIÉ Sanjosé, Marlène NON SPÉCIFIÉ Lalonde, Sébastien NON SPÉCIFIÉ Demarquette, Nicole R. NON SPÉCIFIÉ |
| Professeur: | Professeur Demers, Vincent |
| Affiliation: | Génie mécanique |
| Date de dépôt: | 18 déc. 2025 15:16 |
| Dernière modification: | 18 déc. 2025 15:16 |
| URI: | https://espace2.etsmtl.ca/id/eprint/32453 |
