Saghafi, Marzia, Mohajernia, Bita et Urbanic, Ruth Jill.
2025.
« Design and deposition sequence approaches for enhanced residual stress management in directed energy deposition ».
In Proceedings of the CSME-CFDSC-CSR 2025 International Congress (Montreal, QC, Canada, May 25-28, 2025)
Coll. « Progress in Canadian Mechanical Engineering », vol. 8.
Prévisualisation |
PDF

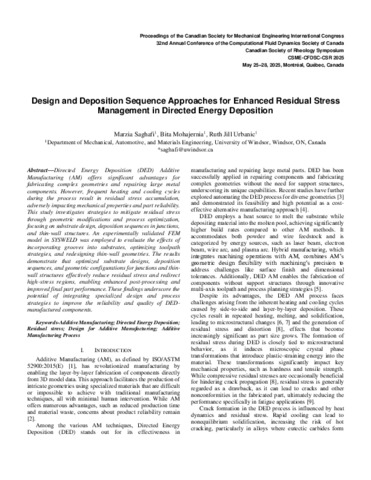

153 - Design and deposition sequence app.pdf - Version publiée Licence d'utilisation : Tous les droits réservés aux détenteurs du droit d'auteur. Télécharger (943kB) | Prévisualisation |
Résumé
Directed Energy Deposition (DED) Additive Manufacturing (AM) offers significant advantages for fabricating complex geometries and repairing large metal components. However, frequent heating and cooling cycles during the process result in residual stress accumulation, adversely impacting mechanical properties and part reliability. This study investigates strategies to mitigate residual stress through geometric modifications and process optimization, focusing on substrate design, deposition sequences in junctions, and thin-wall structures. An experimentally validated FEM model in SYSWELD was employed to evaluate the effects of incorporating grooves into substrates, optimizing toolpath strategies, and redesigning thin-wall geometries. The results demonstrate that optimized substrate designs, deposition sequences, and geometric configurations for junctions and thin-wall structures effectively reduce residual stress and redirect high-stress regions, enabling enhanced post-processing and improved final part performance. These findings underscore the potential of integrating specialized design and process strategies to improve the reliability and quality of DED-manufactured components.
| Type de document: | Compte rendu de conférence |
|---|---|
| Éditeurs: | Éditeurs ORCID Hof, Lucas A. NON SPÉCIFIÉ Di Labbio, Giuseppe NON SPÉCIFIÉ Tahan, Antoine NON SPÉCIFIÉ Sanjosé, Marlène NON SPÉCIFIÉ Lalonde, Sébastien NON SPÉCIFIÉ Demarquette, Nicole R. NON SPÉCIFIÉ |
| Date de dépôt: | 18 déc. 2025 15:32 |
| Dernière modification: | 18 déc. 2025 15:32 |
| URI: | https://espace2.etsmtl.ca/id/eprint/32493 |
