Nabavi, Seyedfakhreddin, Ménard, Michaël and Nabki, Frederic.
2025.
« Electrostatic MEMS phase shifter for SiN photonic integrated circuits ».
Journal of Sensor and Actuator Networks, vol. 14, nº 5.
Compte des citations dans Scopus : 1.

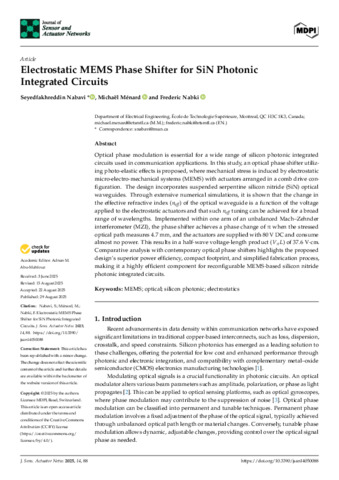

Preview |
PDF
Nabki-F-2025-32991.pdf - Published Version Use licence: Creative Commons CC BY. Download (4MB) | Preview |
Abstract
Optical phase modulation is essential for a wide range of silicon photonic integrated circuits used in communication applications. In this study, an optical phase shifter utilizing photo-elastic effects is proposed, where mechanical stress is induced by electrostatic micro-electro-mechanical systems (MEMS) with actuators arranged in a comb drive configuration. The design incorporates suspended serpentine silicon nitride (SiN) optical waveguides. Through extensive numerical simulations, it is shown that the change in the effective refractive index (neff) of the optical waveguide is a function of the voltage applied to the electrostatic actuators and that such neff tuning can be achieved for a broad range of wavelengths. Implemented within one arm of an unbalanced Mach–Zehnder interferometer (MZI), the phase shifter achieves a phase change of π when the stressed optical path measures 4.7 mm, and the actuators are supplied with 80 V DC and consume almost no power. This results in a half-wave voltage-length product (VπL) of 37.6 V·cm. Comparative analysis with contemporary optical phase shifters highlights the proposed design’s superior power efficiency, compact footprint, and simplified fabrication process, making it a highly efficient component for reconfigurable MEMS-based silicon nitride photonic integrated circuits.
| Item Type: | Peer reviewed article published in a journal |
|---|---|
| Professor: | Professor Ménard, Michaël Nabki, Frédéric |
| Affiliation: | Génie électrique, Génie électrique |
| Date Deposited: | 14 Nov 2025 17:41 |
| Last Modified: | 09 Jan 2026 22:45 |
| URI: | https://espace2.etsmtl.ca/id/eprint/32991 |
