Szabo-Som, Clarissa, Fabien-Ouellet, Gabriel, Pasquier, Philippe et Dimech, Adrien.
2026.

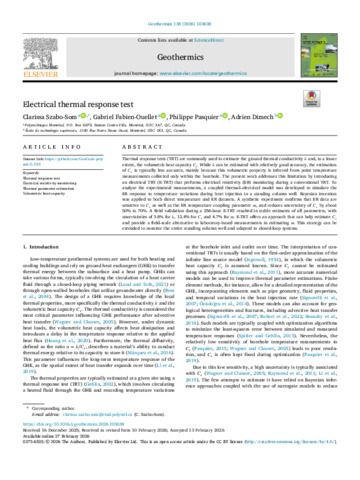

« Electrical thermal response test ».
Geothermics, vol. 138.
Prévisualisation |
PDF
Dimech-A-2026-33508.pdf - Version publiée Licence d'utilisation : Creative Commons CC BY. Télécharger (4MB) | Prévisualisation |
Résumé
Thermal response tests (TRT) are commonly used to estimate the ground thermal conductivity � and, to a lesser extent, the volumetric heat capacity ��. While � can be estimated with relatively good accuracy, the estimation of �� is typically less accurate, mainly because this volumetric property is inferred from point temperature measurements collected only within the borehole. The present work addresses this limitation by introducing an electrical TRT (E-TRT) that performs electrical resistivity (ER) monitoring during a conventional TRT. To analyse the experimental measurements, a coupled thermal–electrical model was developed to simulate the ER response to temperature variations during heat injection in a standing column well. Bayesian inversion was applied to both direct temperature and ER datasets. A synthetic experiment confirms that ER data are sensitive to �� as well as the ER temperature coupling parameter �, and reduces uncertainty of �� by about 50% to 70%. A field validation during a 256-hour E-TRT resulted in stable estimates of all parameters, with uncertainties of 3.8% for �, 12.4% for �� and 4.7% for �. E-TRT offers an approach that can help estimate �� and provide a field-scale alternative to laboratory-based measurements in estimating �. This strategy can be extended to monitor the entire standing column well and adapted to closed-loop systems
| Type de document: | Article publié dans une revue, révisé par les pairs |
|---|---|
| Chercheur(-euse): | Chercheur(-euse) Dimech, Adrien |
| Affiliation: | Génie de la construction |
| Date de dépôt: | 24 mars 2026 17:22 |
| Dernière modification: | 22 avr. 2026 19:30 |
| URI: | https://espace2.etsmtl.ca/id/eprint/33508 |
