Impedance control self-calibration of a collaborative robot using kinematic coupling

Téléchargements

Téléchargements par mois depuis la dernière année

Plus de statistiques...

Nadeau, Nicholas A., Bonev, Ilian A. et Joubair, Ahmed. 2019. « Impedance control self-calibration of a collaborative robot using kinematic coupling ». Robotics, vol. 8, nº 2.
Compte des citations dans Scopus : 8.

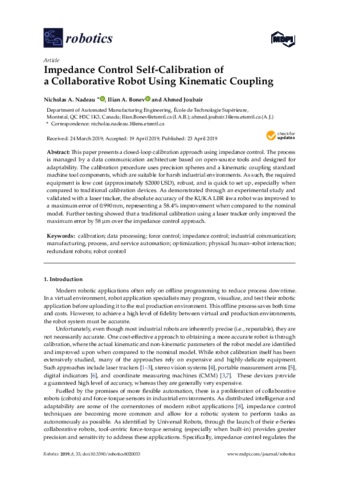

[thumbnail of Bonev I 2019 19784.pdf]
Prévisualisation
PDF
Bonev I 2019 19784.pdf - Version publiée
Licence d'utilisation : Creative Commons CC BY.

Télécharger (7MB) | Prévisualisation

Résumé

This paper presents a closed-loop calibration approach using impedance control. The process is managed by a data communication architecture based on open-source tools and designed for adaptability. The calibration procedure uses precision spheres and a kinematic coupling standard machine tool components, which are suitable for harsh industrial environments. As such, the required equipment is low cost (approximately $2000 USD), robust, and is quick to set up, especially when compared to traditional calibration devices. As demonstrated through an experimental study and validated with a laser tracker, the absolute accuracy of the KUKA LBR iiwa robot was improved to a maximum error of 0.990 mm, representing a 58.4% improvement when compared to the nominal model. Further testing showed that a traditional calibration using a laser tracker only improved the maximum error by 58 µm over the impedance control approach.

Type de document: Article publié dans une revue, révisé par les pairs
Professeur:
Professeur
Bonev, Ilian
Affiliation: Génie des systèmes
Date de dépôt: 14 nov. 2019 20:17
Dernière modification: 18 nov. 2019 20:06
URI: https://espace2.etsmtl.ca/id/eprint/19784
