Simmons, Scott, Manor, Matan, Dorier, Alexis, Mendes, Catarina Esposito et Lubitz, William.
2025.
« Experimental measurement of gap leakage and the fill height gradient in Archimedes screw pumps ».
In Proceedings of the CSME-CFDSC-CSR 2025 International Congress (Montreal, QC, Canada, May 25-28, 2025)
Coll. « Progress in Canadian Mechanical Engineering », vol. 8.
Prévisualisation |
PDF

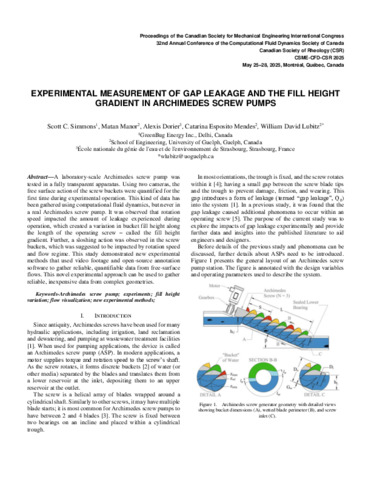

22 - Experimental measurement of gap lea.pdf - Version publiée Licence d'utilisation : Tous les droits réservés aux détenteurs du droit d'auteur. Télécharger (704kB) | Prévisualisation |
Résumé
A laboratory-scale Archimedes screw pump was tested in a fully transparent apparatus. Using two cameras, the free surface action of the screw buckets were quantified for the first time during experimental operation. This kind of data has been gathered using computational fluid dynamics, but never in a real Archimedes screw pump. It was observed that rotation speed impacted the amount of leakage experienced during operation, which created a variation in bucket fill height along the length of the operating screw - called the fill height gradient. Further, a sloshing action was observed in the screw buckets, which was suggested to be impacted by rotation speed and flow regime. This study demonstrated new experimental methods that used video footage and open-source annotation software to gather reliable, quantifiable data from free-surface flows. This novel experimental approach can be used to gather reliable, inexpensive data from complex geometries.
| Type de document: | Compte rendu de conférence |
|---|---|
| Éditeurs: | Éditeurs ORCID Hof, Lucas A. NON SPÉCIFIÉ Di Labbio, Giuseppe NON SPÉCIFIÉ Tahan, Antoine NON SPÉCIFIÉ Sanjosé, Marlène NON SPÉCIFIÉ Lalonde, Sébastien NON SPÉCIFIÉ Demarquette, Nicole R. NON SPÉCIFIÉ |
| Date de dépôt: | 18 déc. 2025 15:32 |
| Dernière modification: | 18 déc. 2025 15:32 |
| URI: | https://espace2.etsmtl.ca/id/eprint/32505 |
